• 60/40 folding rear seat
• Air conditioning
• Audio input jack
• Cargo compartment covered storage
• Cargo tie down loops
• Cloth Seat Trim
• Driver height adjustment
• Front & rear floor mats
• Front dome light w/on/off switch
• Front seat area carpet
• Front seatback map pockets
• Full length floor console
• Low back bucket seats
• Outside temp & compass gauge
• Premium instrumentation w/tachometer
• Pwr door locks
• Rear dome light w/on/off switch
• Rear seat outboard head restraints
• Rear/cargo area carpet
• Reclining front seats
• Remote keyless entry
• Sentry Key theft deterrent system
• SIRIUS satellite radio (subscription required)
• Sliding sunvisors w/mirrors
• Speed control
• Sport bar w/full padding
• Tilt steering column

• (2) front/(1) rear tow hooks
• 3.21 axle ratio
• 4-wheel disc brakes
• 600-CCA maintenance free battery
• Command-Trac shift-on-the-fly 4WD system
• Front stabilizer bar
• Fuel tank skid plate
• Hill start assist
• Hydraulic assist brake boost
• Next generation Dana 30 solid front axle
• Next generation Dana 44 HD rear axle
• Pwr steering
• Rear stabilizer bar
• Transfer case skid plate

• 4-wheel anti-lock brakes
• Child safety rear door locks
• Electronic roll mitigation
• Electronic stability program
• Tire pressure monitoring warning lamp
• Traction control

4-SPEED AUTOMATIC TRANSMISSION

• 3.73 axle ratio

BLACK FREEDOM TOP 3-PIECE HARDTOP

• rear window wiper/washer & defroster
• freedom panel storage bag

3.8L OHV 12-VALVE SMPI V6 ENGINE

• (STD)

P255/70R18 ON/OFF-ROAD OWL TIRES

• (STD)

24G CUSTOMER PREFERRED ORDER SELECTION PKG

• 3.8L V6 engine
• 4-speed auto trans

MEDIA CENTER 730N

• AM/FM stereo w/CD/DVD/MP3 player
• iPod control
• 30GB hard drive w/4250 song capacity
• 6.5" touch screen
• GPS navigation
• SIRIUS traffic w/1-year service
• UConnect hands-free communication w/voice command
• auto-dimming rearview mirror

TRAILER TOW GROUP

• 3.73 axle ratio
• class II receiver hitch
• trailer sway damping
• 4-pin trailer connector wiring

• 3.73 AXLE RATIO
• 4-SPEED AUTOMATIC TRANSMISSION -inc: 3.73 axle ratio
• 6X7 ORDER CODE
• BLACK FREEDOM TOP 3-PIECE HARDTOP -inc: rear window wiper/washer & defroster freedom panel storage bag
• 3.8L OHV 12-VALVE SMPI V6 ENGINE (STD)
• BLACK
• P255/70R18 ON/OFF-ROAD OWL TIRES (STD)
• 24G CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 3.8L V6 engine 4-speed auto trans
• MEDIA CENTER 730N -inc: AM/FM stereo w/CD/DVD/MP3 player iPod control 30GB hard drive w/4250 song capacity 6.5" touch screen GPS navigation SIRIUS traffic (subscription required) UConnect hands-free communication w/voice command auto-dimming rearview mirror
• TRAILER TOW GROUP -inc: 3.73 axle ratio class II receiver hitch trailer sway damping 4-pin trailer connector wiring
• DARK SLATE GRAY/MEDIUM SLATE GRAY CLOTH SEATS
• Four Wheel Drive
• Tow Hooks
• Power Steering
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front On/Off Road
• Tires - Rear On/Off Road
• Conventional Spare Tire
• Conventional Spare Tire
• Convertible Soft Top
• Convertible Soft Top
• Running Boards/Side Steps
• Fog Lamps
• Privacy Glass
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Premium Sound System
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Cloth Seats
• Bucket Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Power Door Locks
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Immobilizer
• Security System
• A/C
• Power Outlet
• Rollover Protection Bars
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Cargo Shade
• ABS
• Traction Control
• Stability Control
• Traction Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Child Safety Locks
• Tire Pressure Monitor

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 140
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Base Curb Weight (lbs): 4294
• Base Curb Weight (lbs): 4269
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 525
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Suspension
• Suspension Type - Front: Live Axle
• Suspension Type - Rear: Live Axle
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.4 x 0.5
• Tires
• Front Tire Order Code: TT6
• Rear Tire Order Code: TT6
• Spare Tire Order Code: TBB
• Front Tire Size: P255/70R18
• Rear Tire Size: P255/70R18
• Spare Tire Size: P255/70R18
• Wheels
• Front Wheel Size (in): 18 x 7.5
• Rear Wheel Size (in): 18 x 7.5
• Spare Wheel Size (in): 18 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 14.7
• Lock to Lock Turns (Steering): 3.5
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.5
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall (in): 173.4
• Width, Max w/o mirrors (in): 73.9
• Height, Overall (in): 70.8
• Height, Overall (in): - TBD -
• Track Width, Front (in): 61.9
• Track Width, Rear (in): 61.9
• Min Ground Clearance (in): 10.2
• Rear Door Opening Height (in): 37.1
• Rear Door Opening Width (in): 58.7
• Liftover Height (in): 31.4
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 44.7
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 86.8
• Cargo Volume to Seat 2 (ft³): 46.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 103.9
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 55.6
• Second Head Room (in): 40.4
• Second Leg Room (in): 37.2
• Second Shoulder Room (in): 56.8
• Second Hip Room (in): 56.7
• Summary

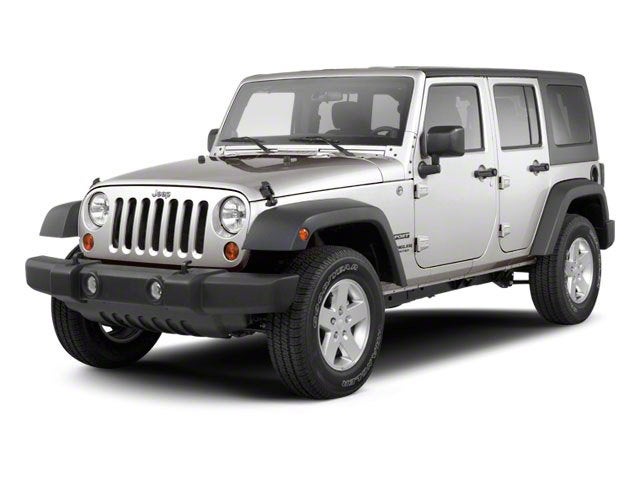

• Vehicle Name: Jeep Wrangler Unlimited
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
